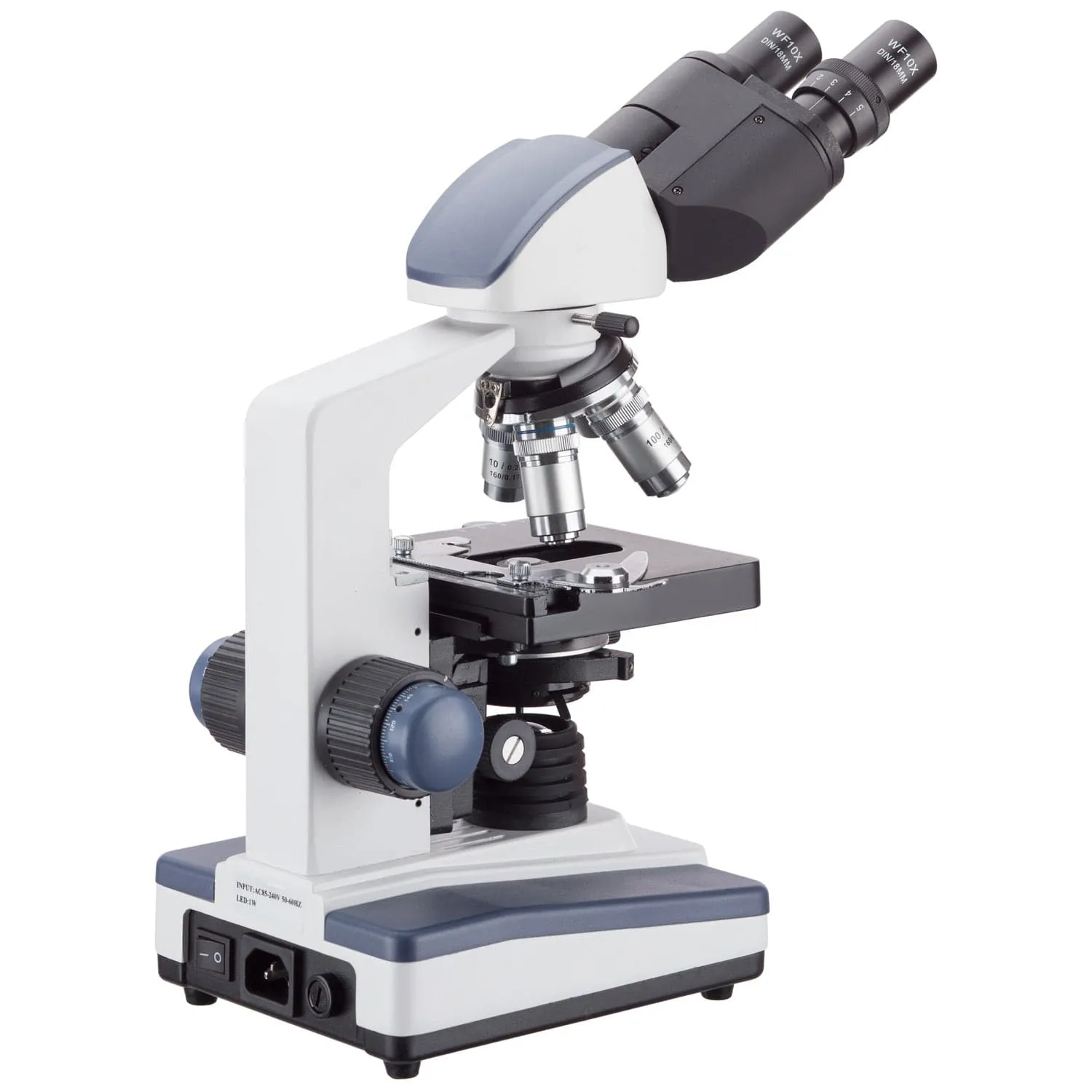

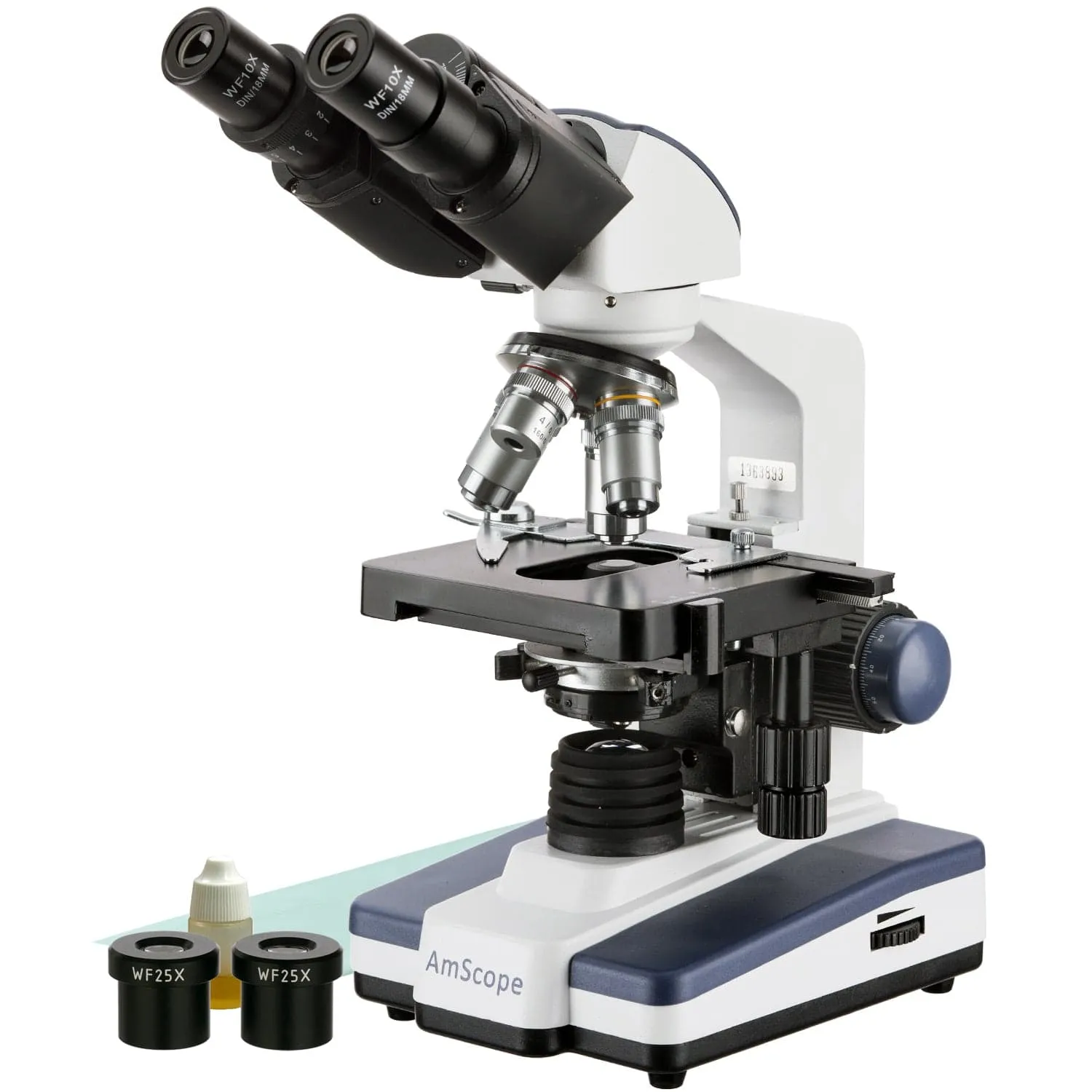

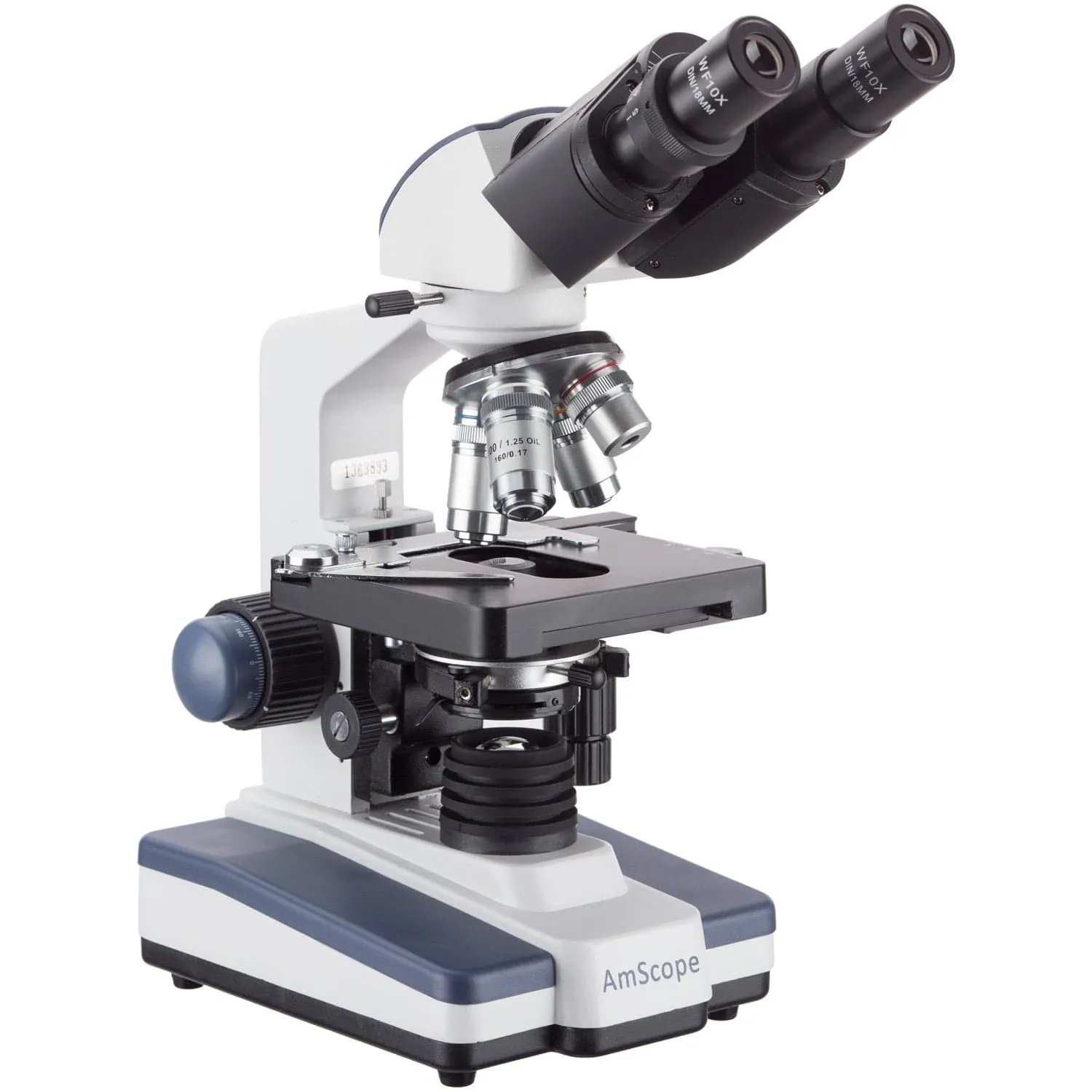

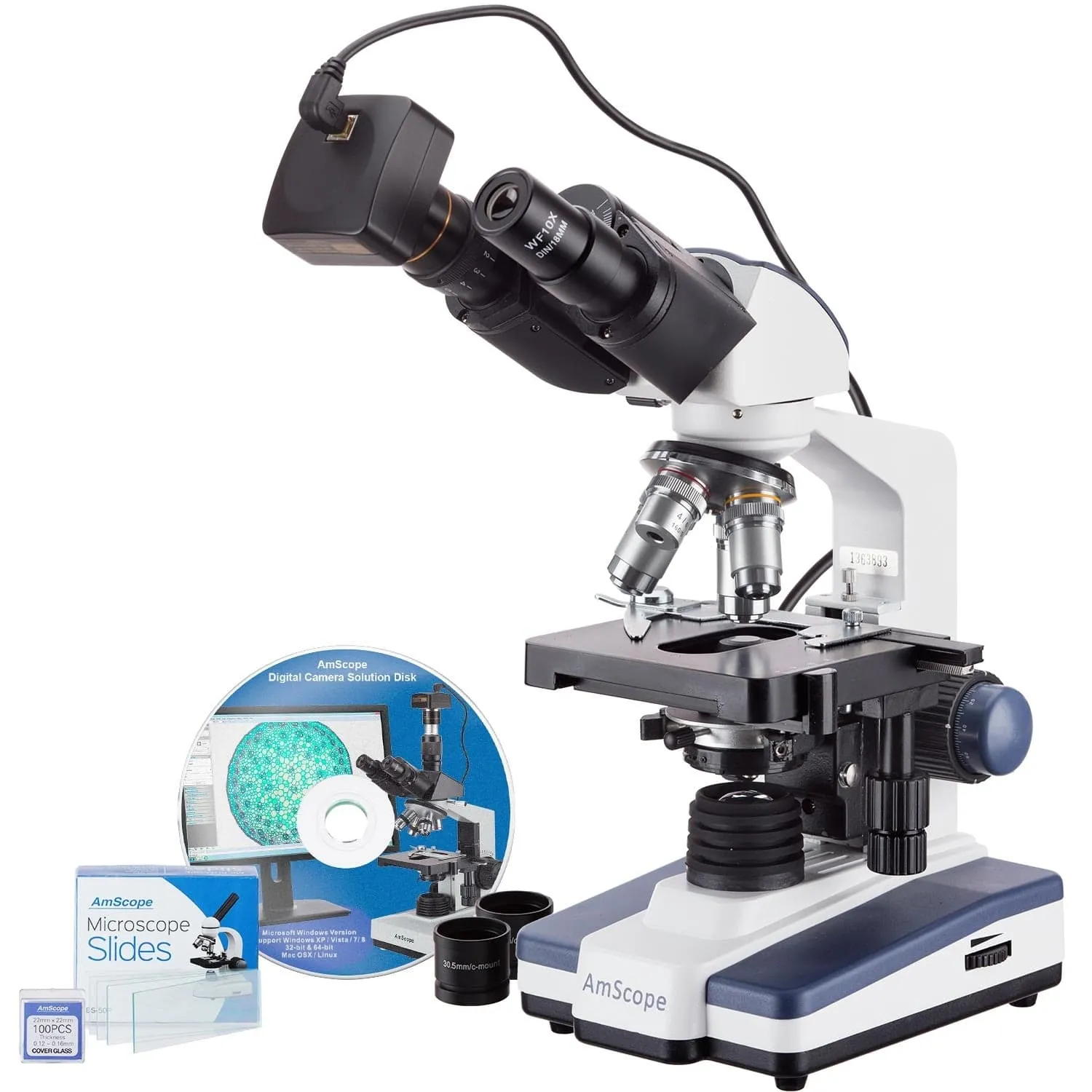

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with coarse & fine focusing, an LED illumination system, and a pack of 50 blank slides with 100 coverslips. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.
The 10MP USB2.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Features :

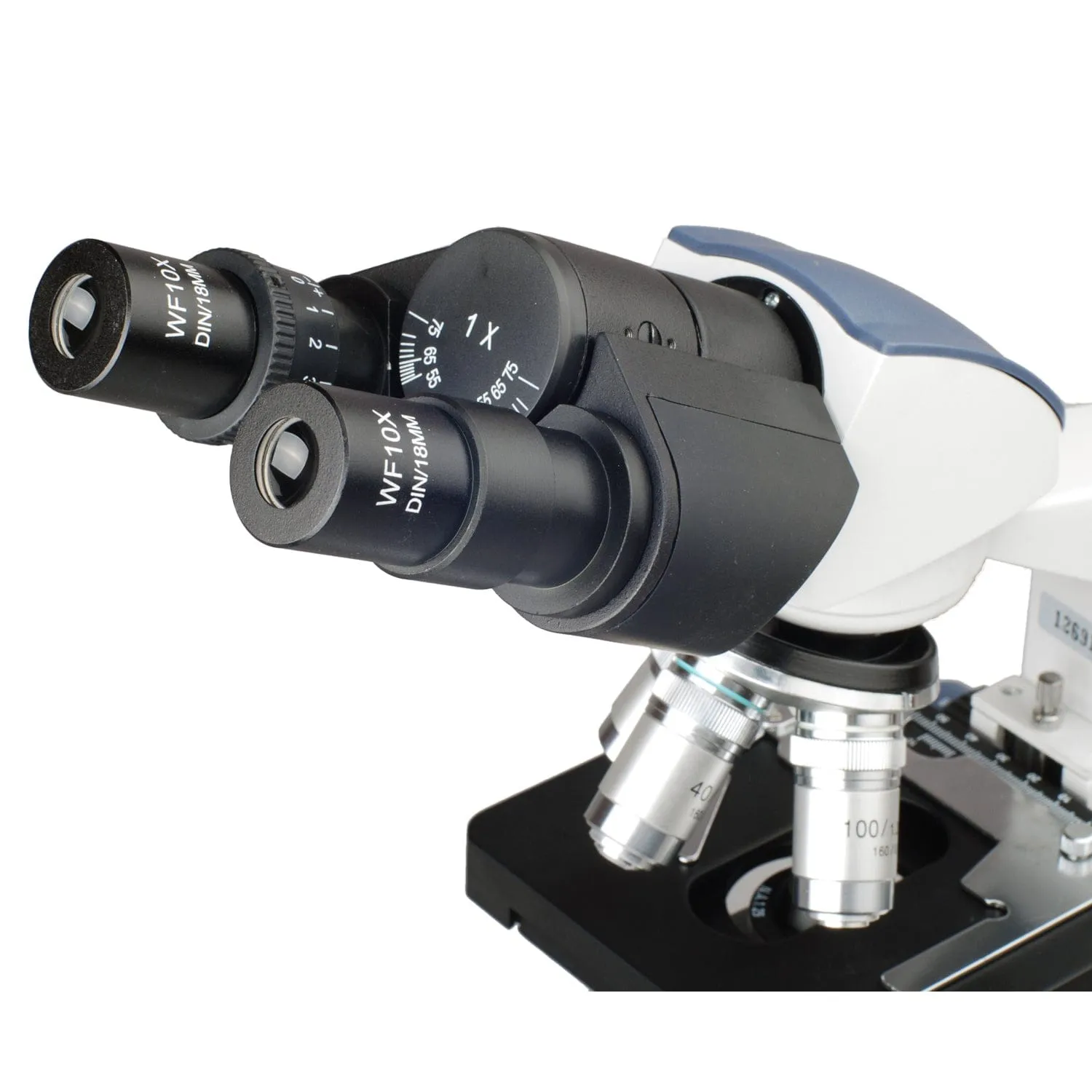

30 degree inclined 360 degree swiveling Siedentopf binocular head
High quality precise optical glass elements
Easy to attach a microscope camera or digital imager
Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X

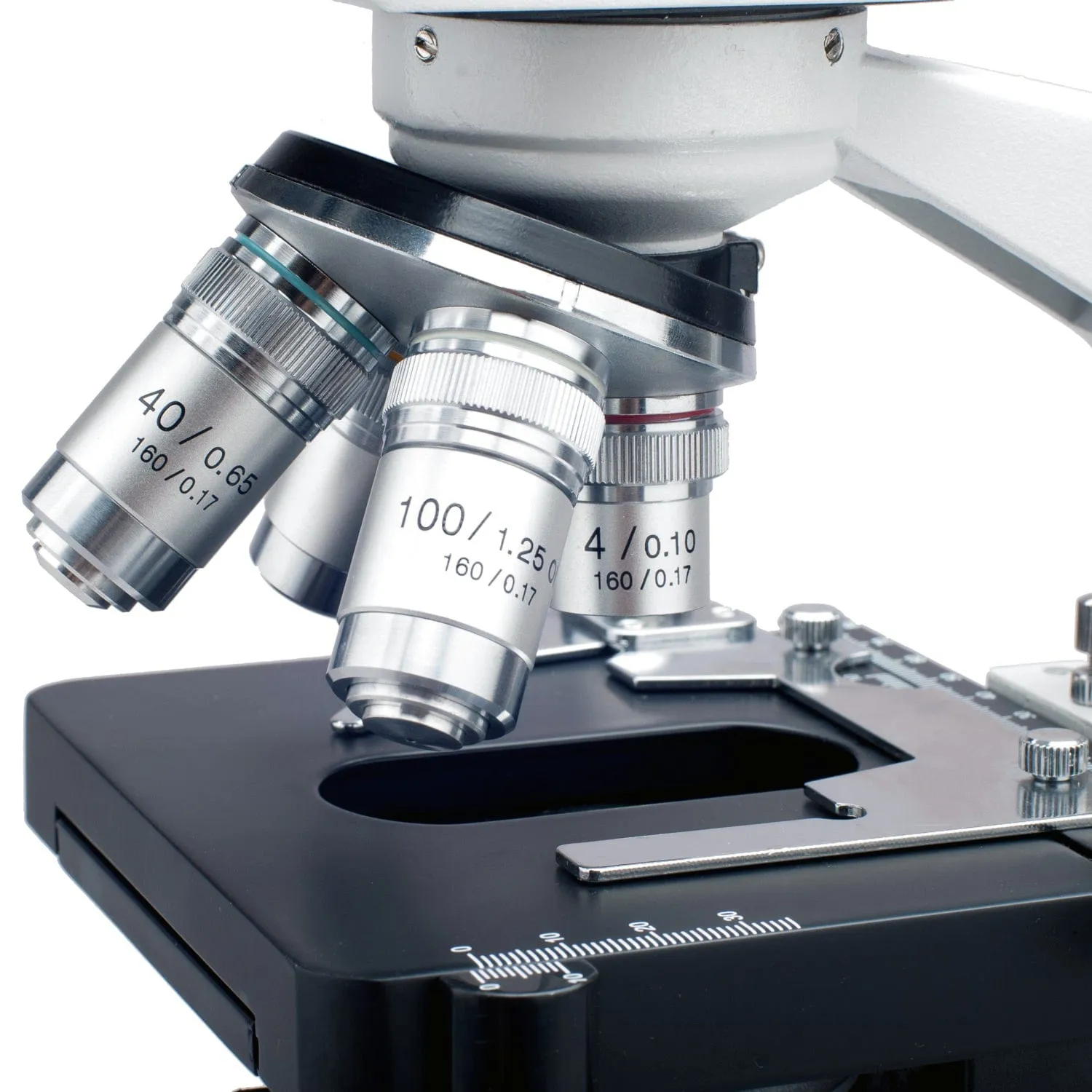

Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
Two pairs of widefield eyepieces: WF10X and WF25X
Adjustable interpupillary distance
Adjustable ocular diopter
Variable intensity illumination
Coaxial coarse and fine focus adjustment
Focusing knobs are on both sides
Stage upward moving lock protects objectives and slides
Stain-resistant double layer mechanical stage
NA1.25 Abbe Condenser with iris diaphragm & filters
Rack and pinion adjustment condenser
Specifications :
Eyepieces: widefield, WF10X and WF25X
Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
Head: 30 degree inclined 360 degree swiveling binocular
Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
Adjustable ocular diopter
Nosepiece: revolving quadruple
Mechanical Stage: 3-D double layer
- Size: 4-5/8" x 5" (118mm x 127mm)
- Travel Range (X-Y): 70mm x 21mm
Condenser: NA1.25 Abbe condenser with iris diaphragm
Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
Focusing: coaxial coarse & fine knobs on both sides
Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)
Camera Specifications:
Sensor: Aptina MT9J003
Sensor Type: CMOS
Sensor Size: 1/2.2" (6.44mm x 4.616mm)
Pixel Size: 1.67
Resolution: 10.0MP
Frame Rate: 27fps @ 896x684, 8fps @ 1792x1374, 1.9fps @ 3584x2748
Sensitivity: 0.31 V/lux-sec
Compatibility: Windows (32/64 bit) XP/Vista/7/8, Mac OSX, Linux
Software Specifications:
OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8 , Linux kernel 3.13
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
Packing List :
One Siedentopf Binocular Microscope Head
One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
Four DIN Standard Objectives, 4X, 10X, 40X and 100X
One Pair of Widefield 10X Eyepieces
One Pair of Widefield 25X Eyepieces
One Blue Color Filter
One Dust Cover

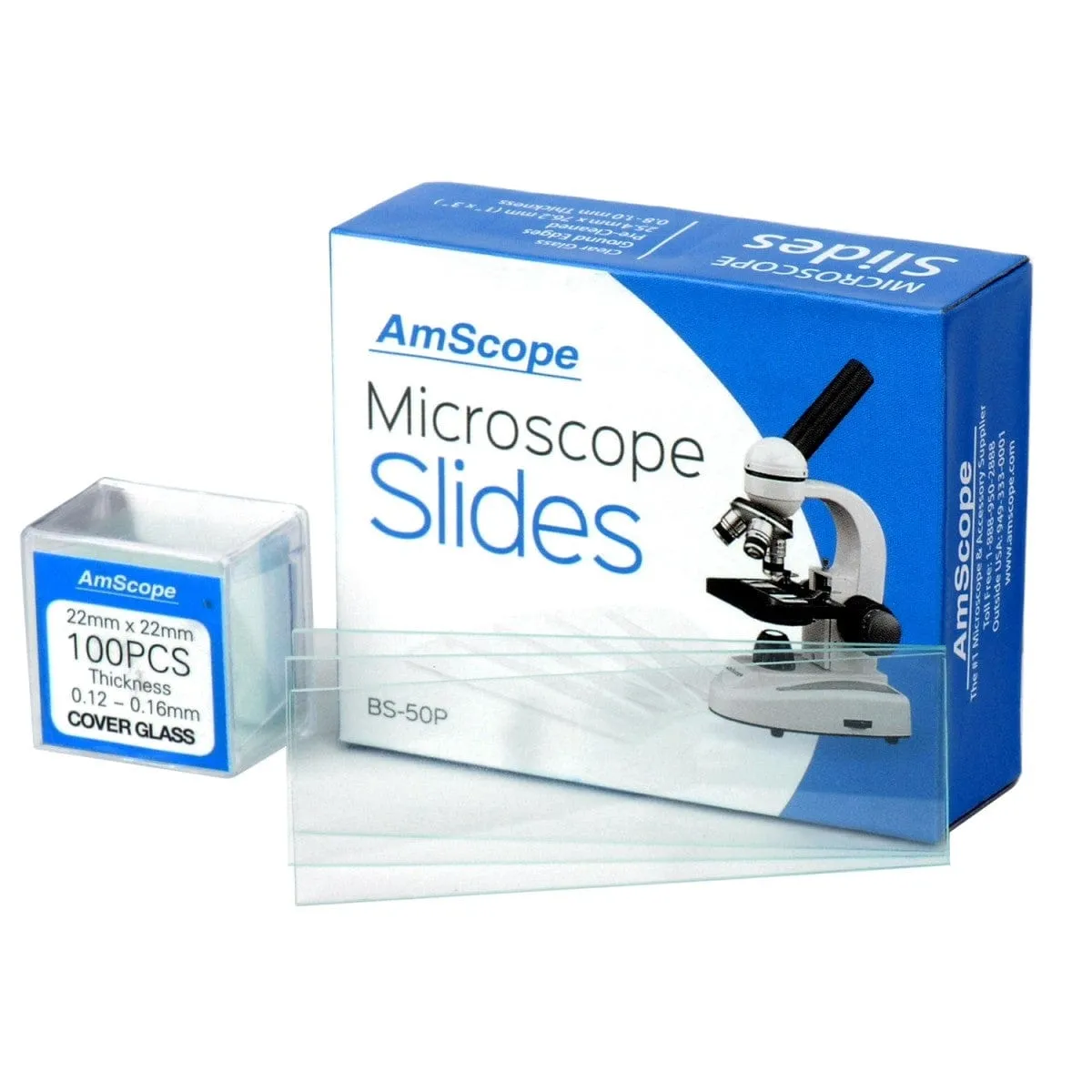

50PC Blank Standard Microscope Slides
100PC Coverslips
Sample Immersion Oil

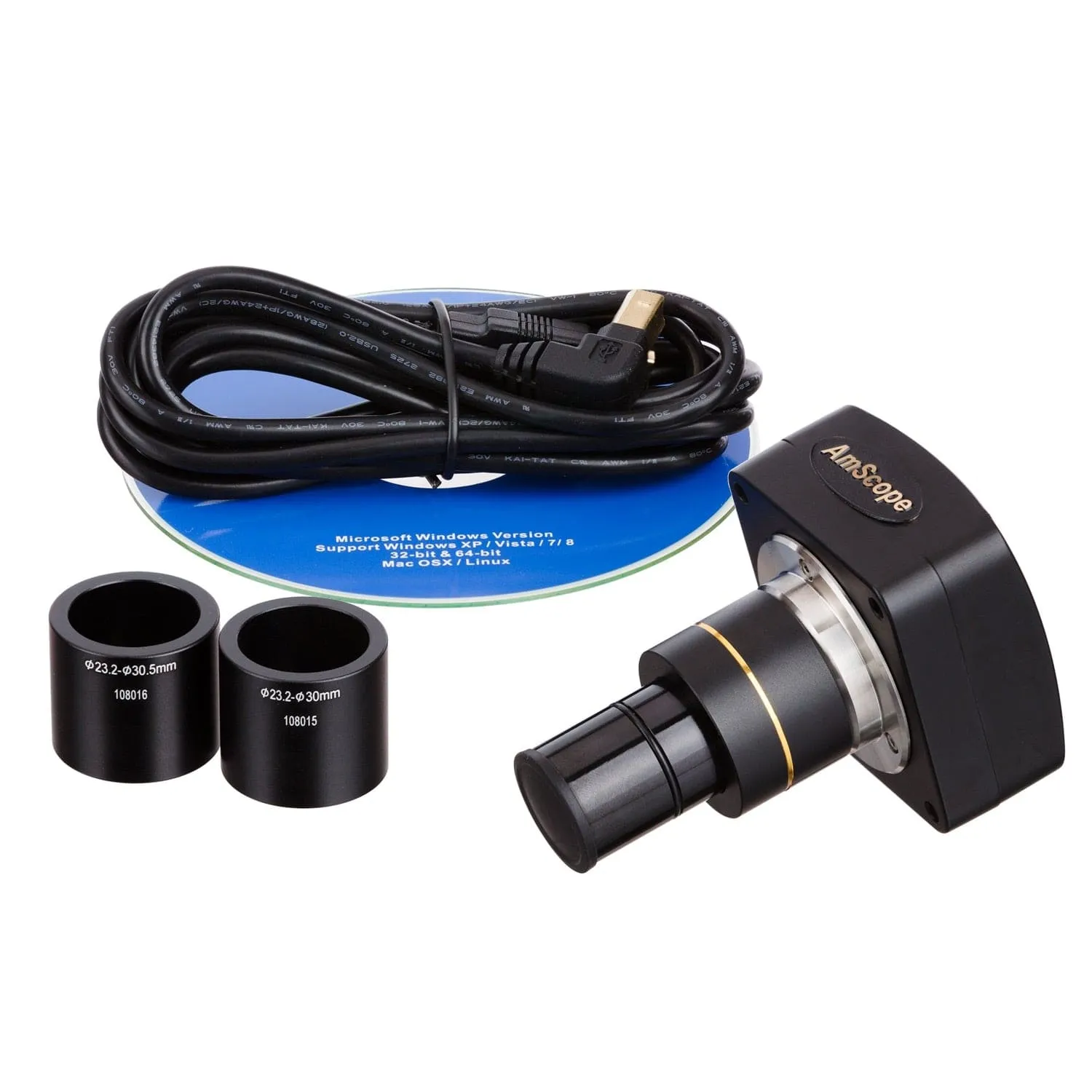

One 10MP USB2.0 Digital Camera with a reduction lense
Two sizing adapters (23-30mm, 23-30.5mm)
One USB cable
User's Manual
Net weight: 10 lbs
Shipping weight: 12 lbs
