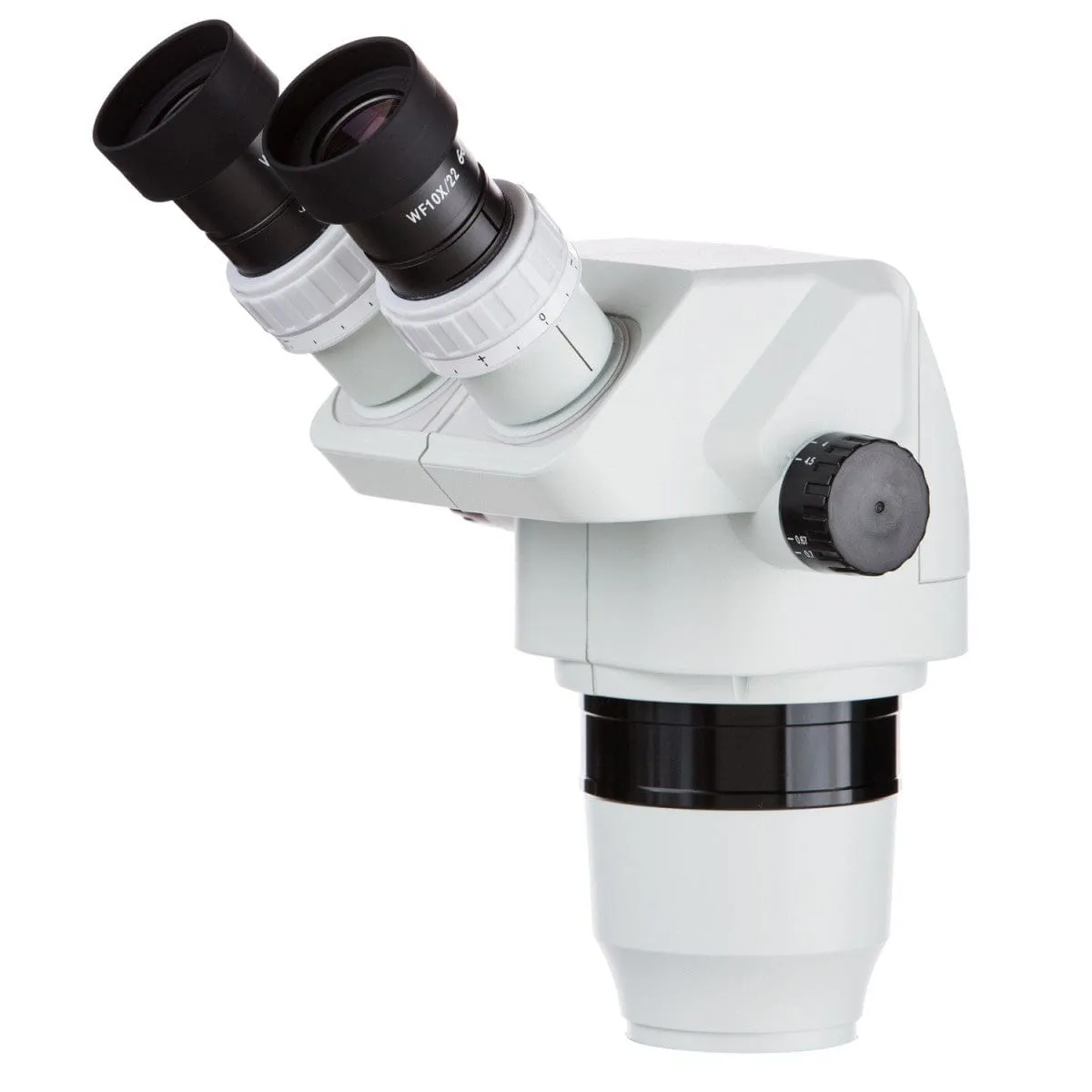

This is a 6.7X-90X zoom magnification binocular stereo microscope head with ultimate optical system, offering top-level sharp clear erect stereo images over a large zoom magnification range. It includes a 2.0X Barlow lens and a pair of extreme widefield high-eyepoint WH10X/22 eyepieces with foldable eyeguards. It comes with 45-degree inclined 30mm eyetubes with diopter. The extreme widefield optics and high-eyepoint design ensure an easy and comfortable observation. This microscope head fits all the stands with a 3" (76mm in diameter) O-ring holder.
Features:
- 6.7X-90X Continuous Zoom Magnification Offering Top-Level Quality Images
- 45-degree Inclined Binocular Head with Extreme Widefield High-Eyepoint Eyepieces
- 30mm Extreme Widefield WH10X/22 Eyepieces
- High Resolution with Great Flatness and Contrast
- Sharp Stereo Erect Images over a Wide Field View
- Crystal Clear Original True Color Images
- Both Ocular-Tubes with Adjustable Diopter
- Large Working Distance 4" (100mm)
- Accurate Alignment Ensuring a Fatigue-Free Viewing
- Full Optical Glass Elements
- Precise Ground Glass Lens
- All Metal Mechanical Components
- Adjustable Interpupillary Distance
- Rubber Eyeguards Included
- Manufactured under ISO 9001 Quality Control Standard
- Excellent Five (5) Year Manufacturer Warranty
Specifications:
- Head: 45-degree inclined 360-degree swiveling binocular
- Eyepiece: 30mm extreme widefield high-eyepoint WH10X/22
- Barlow Lens: 2.0X
- Objective: 0.67-4.5X
- Zoom Range: 13.5:1
- Diopter Adjustment: ±5dp
- Interpupillary Distance: 2-3/4" - 2-15/16"(47-75mm)
- Field of View: 1-3/8" (35mm)
- Working Distance: 4" (100mm)
- Head Mounting Size: 3" (76mm) in diameter
- Accessory Mounting Size: 1-7/8" (48mm female thread) in diameter
Packing List:
- One Binocular Stereo Zoom Head
- One Pair of Extreme Widefield WH10X/22 Eyepieces
- One 2.0X Extreme Widefield Barlow Lens
- One Pair of Foldable Eye-Guards
- User's Manual Download
- Shipping Weight: 10 lbs
