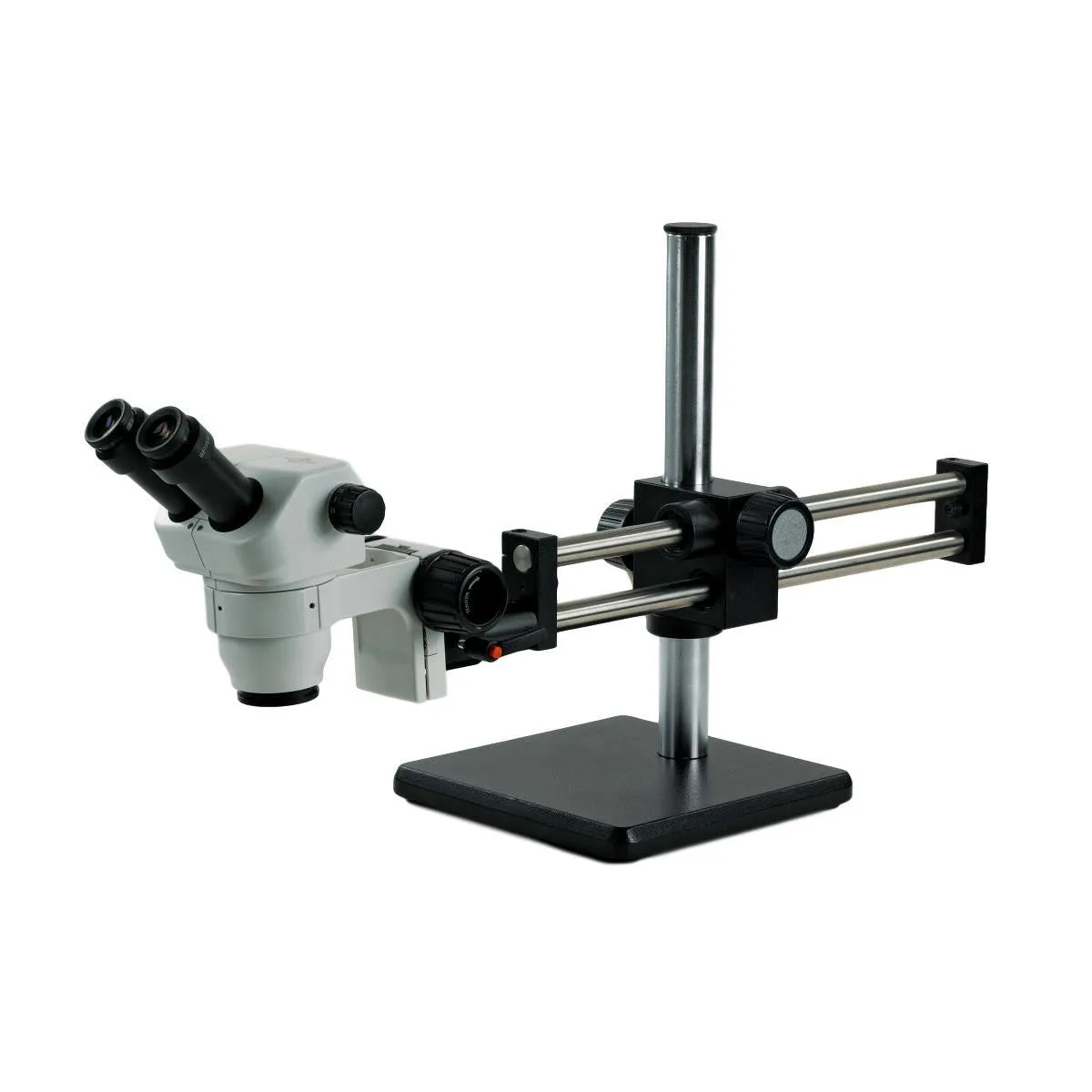

ACCU-SCOPE’s 3078 Zoom Stereo Microscope Series incorporates a newly designed optical system which provides sharp, high resolution, 3-dimensional views of image samples. The ergonomic, modular design makes it ideal for university, industrial and OEM applications. This system is configured with the dual ball bearing boom stand for ultra smooth transition for and aft. Never worry about the coarse judder found with lower quality boom stands. This high precision stand will make maneuvering the microscope easy and effortless.
Features:
- Optical System: Greenough.
- Viewing Head: Binocular or Trinocular viewing head, inclined 45°. Interpupillary distance adjustment 54-75mm, diopter adjustment /- 5.
- Eyepieces: WF10x focusable eyepieces, 22mm field of view. Eye guards included.
- Objectives: Zoom magnification objective 0.8x – 3.5x (8x – 35x w/ 10x eyepieces). 1X glass shield included.
- Focusing System: Dual focusing knobs.
- Stand: Ball bearing boom stand, horizontal arm with bonder port; bonder arm with ø76mm pod holder, 5/8" mounting pin; base dimensions 10" x 10", Vertical post 15.5", Horizontal arm 23".
- Accessories: Dust cover and instruction manual.
- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved.
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb.
- Shipping size: Box 1: 16x12x10 inches; Box 2: 23x14x18 inches
- Shipping weight: Box 1: 8lbs.; Box 2: 40lbs."
